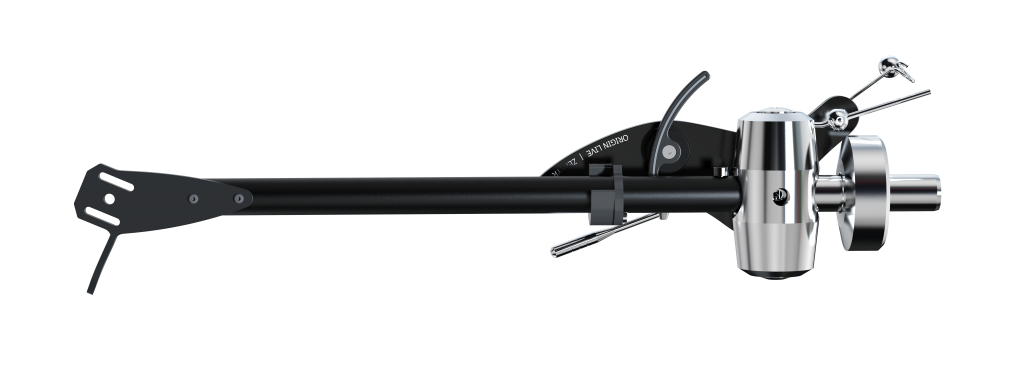

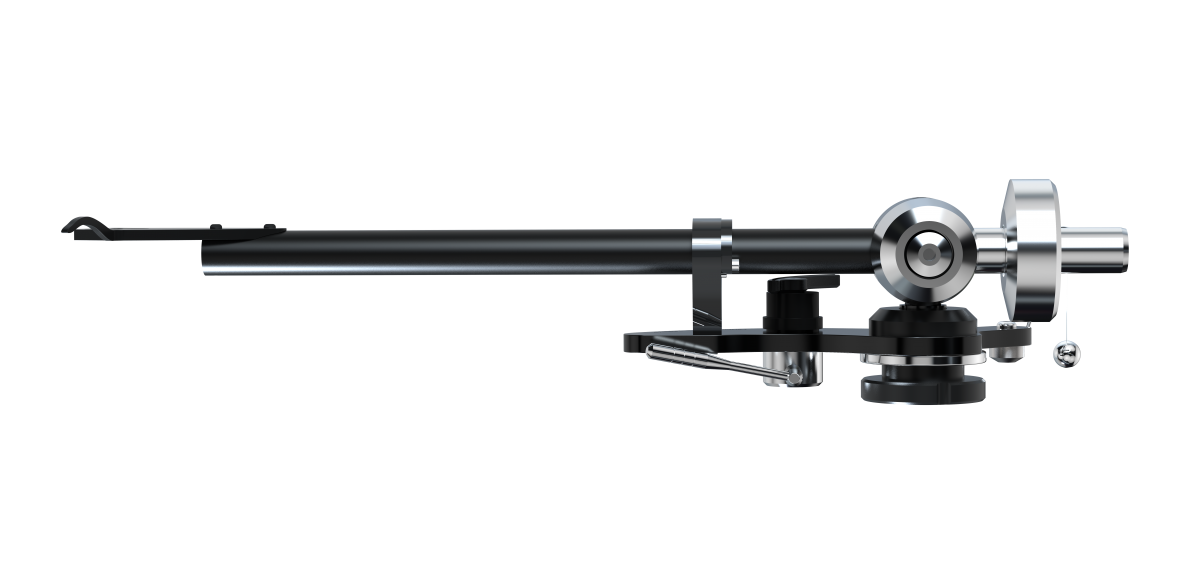

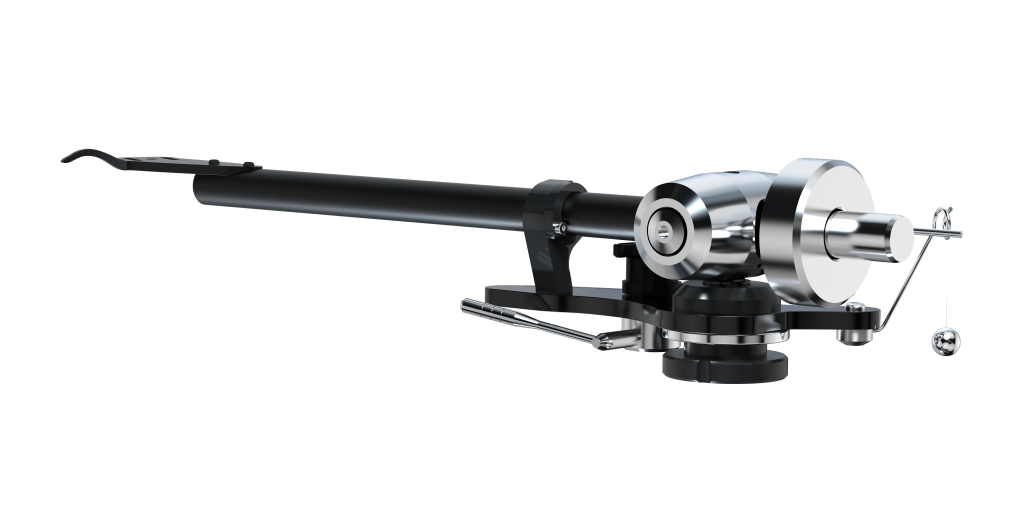

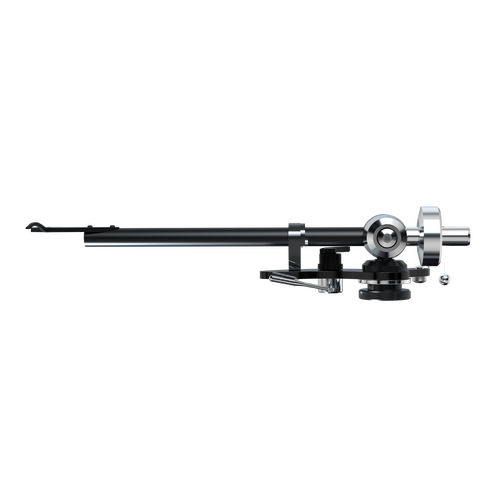

Zephyr Mk5 tonearm
SKU: OLZ5
Description
The Zephyr is a considerable advance on the Silver arm. A stiffer arm tube and higher-grade materials in the yoke and arm base improve the definition and impact of notes, particularly in the bass which is tighter, lower and weightier than the silver. However, all aspects of the music are improved by a more sophisticated costly approach to each component.
Warranty
We guarantee arms to be free from fault for 5 years and will undertake remedial work, providing the arm has not been modified by any party other than ourselves. This warranty does not cover abuse or mistreatment, which includes neglecting the instructions in the owner manual.
Link to Origin Live Zephyr product page
Specifications applicable to all Origin Live arms.
|
Effective length |
240 mm |
|
Overhang |
17.24 mm |
|
Offset angle |
23 degrees |
|
Mounting distance: platter centre to arm hole centre |
223 mm |
|
Diameter of mounting hole |
24 - 25 mm |
|
Size of base mounting nut |
32mm A/F (across flats) |
|
Maximum armboard thickness |
27mm |
|
Length of external cable |
1.2m except for DJ option of 2m |
|
Capacitance in pF for all arms up to Conqueror |
130 pF per channel |
|
Capacitance in pF for Linear Flow 2 cable |
340 pF per channel |
|
Resistance in Ohms |
0.002 ohms |
Specifications for 12" Arms.
|
Effective length |
309 mm |
|
Overhang |
13.2 mm |
|
Offset angle |
17.6 degrees |
|
Distance from Pivot to Spindle |
295.6 mm |
Variable specifications
|
Specification |
OL1 |
OL1 Full mod |
Silver |
Onyx, Zephyr & Encounter |
Illustrious |
Conqueror |
Enterprise |
|
Effective mass in grams |
11g |
12g |
12g |
12g |
12.5g |
14g |
15.5g |
|
Effective mass in grams (12" arm) |
- |
- |
16.2g |
16.2g |
16.875g |
18.9g |
20.925g |
|
Weight in grams |
300g |
350g |
570g |
570g |
850g |
950g |
750g |
|
Weight in grams (12" arm) |
- |
- |
620g |
620g |
900g |
1000g |
800g |
|
Packed weight in grams |
750g |
850g |
850g |
1650g |
1850g |
2050g |
2050g |
|
Stylus Force guage incl. |
|
|
|
||||
|
Threaded VTA adjuster incl. |
inbuilt |
inbuilt |
inbuilt |
inbuilt |
Origin Live have a policy of continuous development and reserve the right to change product specifications and appearance without notice.
